The full-size Behringer X32 brings 32 Midas-designed mic preamps and 16 XLR outputs onto the console itself, eliminating the need for a stage box on small-to-mid stages. Two AES50 ports still let you hang DL or S-series stage boxes when the rig grows. The 25-bus engine delivers a healthy supply of independent IEM mixes, and Ultranet runs to P-16 personal mixers off a single Cat5 to the stage. A long-running workhorse of monitor world for budget-conscious productions.
~$2,799Use retailer rows for current price and stock
01 · What it does—and what that changes in your rig.
Product overview
Start with the payoff, then work through how it functions, where it fits, and the details that change a real build.
The payoff
Digital Mixer decisions, organized around the whole rig.
The X32 is the console that made professional-grade digital mixing accessible at a price point where it genuinely changed how touring and regional production gets staffed and budgeted. It sits at the center of a monitor rig or FOHFront Of House — the main mix the audience hears, and the console position out in the room where it gets mixed. position as the primary mixing surface — 32 Midas-designed mic preampsThe gain stage that lifts a mic’s tiny signal up to line level — the first thing a signal hits, and a big part of how a console sounds. onboard, 16 analog XLRThe standard 3-pin locking connector for mics and balanced line signals — pin 1 is the shield, pins 2 and 3 carry the balanced pair. outputs, and a 25-bus engine that gives you enough independent mixes to cover a full IEMIn-Ear Monitor — earpieces that replace floor wedges, feeding each player their own mix. The reason this whole rack exists.-heavy stage without immediately reaching for expansion hardware. This is not a rack unitThe standard slice of rack height: 1U = 1.75″. A 3U box takes three slices; half-rack gear pairs two units side by side in one. in the traditional sense; it lives on a console stand or work surface and gets bolted into road cases, not rack rails.
Documented outputs
1919 destination connections
Documented inputs
34Based on documented inputs
Rack space
Outside rackPlan a shelf, tray, or stage position

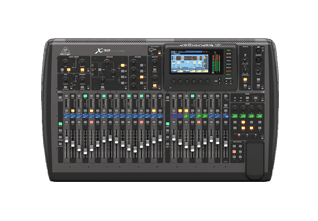

Behringer product panelOutside rack · 100W
Function
How it works in the path
Those 32 local preampsThe gain stage that lifts a mic’s tiny signal up to line level — the first thing a signal hits, and a big part of how a console sounds. mean you can run a modest production without a stage boxThe I/O endpoint on stage: mics plug in there and one digital line (AES50, Dante) carries everything to the console. The snake, digitized. at all, which changes load-in dramatically — one multicore snakeA multicore cable bundling many channels into one stage-to-console run. A sub-snake collects one corner of the stage into a drop box. from stage to FOHFront Of House — the main mix the audience hears, and the console position out in the room where it gets mixed. and you are operational. When the rig grows, the two AES50The Behringer/Midas console-to-stage-box link: 48 channels each way over one shielded Cat5e cable, with near-zero latency. ports each carry 48 channels bidirectionally, so adding a DL32 or S16 stage box slots in cleanly. The UltranetBehringer’s personal-monitoring link: 16 channels down a Cat5 cable to P16 mixers, so players dial their own ears without using console outputs. output runs up to 16 channels of personal monitor audio directly to Behringer P-16 personal mixers over a single Cat5Standard network cable grades. In an audio rig one cheap Cat5e run can replace a 48-channel copper snake; AES50 wants it shielded., keeping that infrastructure lean and self-contained. At 100 watts nominal draw and a 130-watt maximum, it is a light load for your power conditioning. The 20.5 kg weight and 525 mm depth are real considerations when spec'ing a road case.
Best fit
Where it earns its place in the system
Pick the X32 if you are running budget-to-mid-tier touring, regional theatre, or a house-of-worship install where the channel count and busA path where multiple channels sum into one signal — mixes, groups, and mains are all buses. A 25-bus console can build 25 blends at once. depth are right and the price ceiling is firm. The Midas preampThe gain stage that lifts a mic’s tiny signal up to line level — the first thing a signal hits, and a big part of how a console sounds. heritage punches above what the price tag suggests. Where it gets harder to justify is on a dedicated IEMIn-Ear Monitor — earpieces that replace floor wedges, feeding each player their own mix. The reason this whole rack exists. rack: this console wants to be your mixing surface, not a rackmounted processor, and the form factor reflects that. Engineers who need a compact, purpose-built monitor rack with a remote-controllable engine at its heart will often find the X32 Rack or a dedicated personal monitor system a better fit than the full console stuffed awkwardly behind the stage.
In the rack
Details worth deciding before load-in.
If you are running the X32 as a dedicated monitor console, assign your IEMIn-Ear Monitor — earpieces that replace floor wedges, feeding each player their own mix. The reason this whole rack exists. mixes to busesA path where multiple channels sum into one signal — mixes, groups, and mains are all buses. A 25-bus console can build 25 blends at once. 1–16 and route them out the 16 local XLRThe standard 3-pin locking connector for mics and balanced line signals — pin 1 is the shield, pins 2 and 3 carry the balanced pair. outputs so everything patches without a stage boxThe I/O endpoint on stage: mics plug in there and one digital line (AES50, Dante) carries everything to the console. The snake, digitized. — saves a trunkThe main multichannel run between stage and console — one fat multicore (or one Cat5e, these days) carrying everything at once. cable and an AES50The Behringer/Midas console-to-stage-box link: 48 channels each way over one shielded Cat5e cable, with near-zero latency. hop on smaller shows.
The Ethernet remote port lets you run X32-Edit from a laptop or tablet at artist position during soundcheck; put the console on a dedicated switch and keep that network isolated from the venue's house network to avoid control dropoutsA brief audio gap when the radio link fails — the thing diversity, distros, and coordination all exist to prevent. mid-show.
Use AES50The Behringer/Midas console-to-stage-box link: 48 channels each way over one shielded Cat5e cable, with near-zero latency. A for your primary stage boxThe I/O endpoint on stage: mics plug in there and one digital line (AES50, Dante) carries everything to the console. The snake, digitized. and leave AES50 B free as a spare port or a second stage box when you expand — patching both from the same Cat5Standard network cable grades. In an audio rig one cheap Cat5e run can replace a 48-channel copper snake; AES50 wants it shielded. run is a common mistake that costs you redundancyA second copy of anything critical — supply, computer, network path — already running so one failure can’t stop the show..
Road-case the X32 with the meter bridge folded and the faders protected; at 20.5 kg and 525 mm deep it needs a properly fitted case with a pull-out work surface, not a generic ATA box with loose padding.
02 · Know the whole path before you buy.
Signal path
Learn the route as a block diagram: source, product function, transport, and destination. Select any block to see what enters, what changes, and what leaves.
Interactive block diagramAuto-looping · hover, focus, or tap to hold a stage
Port-type signalProduct functionSystem boundary
Follow one signal from source to destination
Each block answers the same three questions: what arrives, what changes here, and what leaves.
01 · Source · selected
XLR female + aes3 xlr
etherCON + RJ45
XLR male + RJ45
01 · Source
34 documented inputs
XLR female + aes3 xlr
Arrives as
34 documented inputs
Connector
XLR female + aes3 xlr
Signal
analog audio
03 · What this product asks of the rest of the system.
Compatibility
Treat connector names as the start of the check—not the answer. These are the boundaries that determine a complete working path.
Best fit · Digital Mixer
Use it as digital mixer tracked outside rack rails; follow the manufacturer’s mounting and form-factor guidance.
Plan the companion path
Complete the path with upstream and downstream gear that matches connector, direction, signal type, protocol, and wiring standard.
Protocol boundary
This product declares AES50, ULTRANET; matching plugs alone do not make other protocols compatible.
04 · Every connector, grouped by job.
I/O ports
Switch the product view and the documented port inventory updates with it—hardware and data stay side by side.
Every connector, grouped by job.
Switch panels to keep the hardware view and the documented port list in sync.
Front panelRear panel
All documented ports for Behringer X32 Digital Mixer
Port
Panel
Connector
Direction
Signal
Channels
Mic In 1
rear
XLR female
input
analog audio
—
Mic In 2
rear
XLR female
input
analog audio
—
Mic In 3
rear
XLR female
input
analog audio
—
Mic In 4
rear
XLR female
input
analog audio
—
Mic In 5
rear
XLR female
input
analog audio
—
Mic In 6
rear
XLR female
input
analog audio
—
Mic In 7
rear
XLR female
input
analog audio
—
Mic In 8
rear
XLR female
input
analog audio
—
Mic In 9
rear
XLR female
input
analog audio
—
Mic In 10
rear
XLR female
input
analog audio
—
Mic In 11
rear
XLR female
input
analog audio
—
Mic In 12
rear
XLR female
input
analog audio
—
Mic In 13
rear
XLR female
input
analog audio
—
Mic In 14
rear
XLR female
input
analog audio
—
Mic In 15
rear
XLR female
input
analog audio
—
Mic In 16
rear
XLR female
input
analog audio
—
Mic In 17
rear
XLR female
input
analog audio
—
Mic In 18
rear
XLR female
input
analog audio
—
Mic In 19
rear
XLR female
input
analog audio
—
Mic In 20
rear
XLR female
input
analog audio
—
Mic In 21
rear
XLR female
input
analog audio
—
Mic In 22
rear
XLR female
input
analog audio
—
Mic In 23
rear
XLR female
input
analog audio
—
Mic In 24
rear
XLR female
input
analog audio
—
Mic In 25
rear
XLR female
input
analog audio
—
Mic In 26
rear
XLR female
input
analog audio
—
Mic In 27
rear
XLR female
input
analog audio
—
Mic In 28
rear
XLR female
input
analog audio
—
Mic In 29
rear
XLR female
input
analog audio
—
Mic In 30
rear
XLR female
input
analog audio
—
Mic In 31
rear
XLR female
input
analog audio
—
Mic In 32
rear
XLR female
input
analog audio
—
XLR Out 1
rear
XLR male
output
analog audio
—
XLR Out 2
rear
XLR male
output
analog audio
—
XLR Out 3
rear
XLR male
output
analog audio
—
XLR Out 4
rear
XLR male
output
analog audio
—
XLR Out 5
rear
XLR male
output
analog audio
—
XLR Out 6
rear
XLR male
output
analog audio
—
XLR Out 7
rear
XLR male
output
analog audio
—
XLR Out 8
rear
XLR male
output
analog audio
—
XLR Out 9
rear
XLR male
output
analog audio
—
XLR Out 10
rear
XLR male
output
analog audio
—
XLR Out 11
rear
XLR male
output
analog audio
—
XLR Out 12
rear
XLR male
output
analog audio
—
XLR Out 13
rear
XLR male
output
analog audio
—
XLR Out 14
rear
XLR male
output
analog audio
—
XLR Out 15
rear
XLR male
output
analog audio
—
XLR Out 16
rear
XLR male
output
analog audio
—
AES50 A
rear
etherCON
bidirectional
digital audio
48
AES50 B (redundant)
rear
etherCON
bidirectional
digital audio
48
Ultranet (P-16)
rear
RJ45
output
digital audio
16
AES/EBU In
rear
aes3 xlr
input
digital audio
—
AES/EBU Out
rear
aes3 xlr
output
digital audio
—
USB Audio
rear
usb b
bidirectional
data
—
Ethernet (remote)
rear
RJ45
bidirectional
data
—
Headphones
rear
¼-inch TRS
output
analog audio
—
Power (IEC)
rear
IEC C14
input
power
—
Showing 57 of 57 documented physical ports. Scroll to review the remaining rows.
05 · Compare the decision, not just the price.
Alternatives
The rows are organized around fit, power, I/O, and system role so a cheaper unit cannot hide a more expensive workflow.
X32The full-size Behringer X32 brings 32 Midas-designed mic preamps and 16 XLR outputs onto the console itself, eliminating the need for a stage box on small-to-mid stages. Two AES50 ports still let you hang DL or S-series stage boxes when the rig grows. The 25-bus engine delivers a healthy supply of independent IEM mixes, and Ultranet runs to P-16 personal mixers off a single Cat5 to the stage. A long-running workhorse of monitor world for budget-conscious productions.View gear →
StudioLive Series III SE 32RThe PreSonus StudioLive 32R is the flagship R-series rack mixer: 32 preamps, 64x64 USB, AVB networking, and onboard SD multitrack in 2U. It runs full-band ears from a tablet, feeds broadcast splits over AVB, and records the show without a laptop. The top of the user-requested R-series trio.View gear →
06 · Resolve the questions that can change the purchase or build plan.
Planning questions
Short, source-backed answers surface rack fit, power, cabling, and connection details before they become surprises.
Where does the Behringer X32 Digital Mixer live in a complete rig?
The catalog assigns it no rack units. Builder tracks it as non-rack gear; follow the manufacturer’s mounting, case, and form-factor guidance.
How much power does the Behringer X32 Digital Mixer draw?
Typical draw is 100W and documented maximum draw is 130W.
What connections does the Behringer X32 Digital Mixer have?
57 documented physical ports, including Mic In 1, Mic In 2, Mic In 3, Mic In 4, Mic In 5, Mic In 6.
