The Furman M-8x2 is the most affordable rack-mount power conditioner in Furman's lineup, providing basic surge protection and EMI/RFI filtering across eight rear-panel outlets. It lacks the pull-out rack lights and voltage meters of its siblings, but for budget builds or secondary racks where you just need clean, protected power distribution, it gets the job done at the lowest possible cost. A sensible starting point for any rack build.
UnverifiedPower requirement is not verified in the catalog
Catalog estimate
~$99Use retailer rows for current price and stock
01 · What it does—and what that changes in your rig.
Product overview
Start with the payoff, then work through how it functions, where it fits, and the details that change a real build.
The payoff
Power Conditioner decisions, organized around the whole rig.
The M-8x2 is Furman's entry point into rack power — a 1UThe standard slice of rack height: 1U = 1.75″. A 3U box takes three slices; half-rack gear pairs two units side by side in one. conditioner that takes a single NEMA 5-15 feed and distributes it across eight rear-panel outlets with surge protection and EMI/RFI filtering baked in. In an IEMIn-Ear Monitor — earpieces that replace floor wedges, feeding each player their own mix. The reason this whole rack exists. rack or playback rig, its job is straightforward: give every unit in the rack a clean, protected place to plug in without running a daisy-chain of power strips through the back. It won't impress anyone on a spec sheet, but reliable power distribution is the thing you only notice when it's missing.
Documented outputs
99 destination connections
Documented inputs
1Based on documented inputs
Rack space
1UBuilder checks available rail space
Furman product panel1U · Unverified
Function
How it works in the path
At 15 amps across eight outlets, the M-8x2 has enough headroomThe margin between your normal level and where things clip — headroom is what absorbs the snare hit you didn’t see coming. for a typical IEMIn-Ear Monitor — earpieces that replace floor wedges, feeding each player their own mix. The reason this whole rack exists. or playback rack where most units draw modest power — wireless receivers, a personal mixer, a small switch, maybe a Mac Mini. The shallow 210mm depth fits easily in compact tour-style racks. What you're giving up compared to pricier Furman models is real: there's no front-panel voltmeter to catch a bad venue feed, no pull-out work lights, and no advanced Series Multi-Stage Protection. The filtering is basic. If you're pulling from a sketchy generator or working venues with genuinely dirty power, you'll want something higher in the lineup.
Best fit
Where it earns its place in the rack
The M-8x2 makes the most sense in a secondary or rehearsal rack, a broadcast or streaming cart, or any build where budget discipline matters more than premium filtration — say, a fly-date IEMIn-Ear Monitor — earpieces that replace floor wedges, feeding each player their own mix. The reason this whole rack exists. pack where you're supplementing a known-good house feed. Touring engineers who hit a new building every night and have seen what a voltage sag can do to a show should step up to a Furman with a proper voltmeter at minimum. But for a locked-in corporate residency, a rehearsal studio rack, or a monitor worldThe side-stage domain of the monitor engineer — console, IEM racks, and everything feeding the band’s ears instead of the audience. where another conditioner is already upstream, the M-8x2 earns its place without argument.
In the rack
Details worth deciding before load-in.
Put it at the bottom of the rack — it has no front-panel display to read, so prime eye-level real estate is wasted on it; save that space for your wireless or mixer.
Count your outlet load before you wire up: eight outlets sounds like plenty until a tech patches in a laptop charger and a phone brick 'just for a second' — label the outlets and assign them at build time.
Because there's no voltage meter, carry a cheap plug-in voltage tester or use your phone's audio interface to spot-check the house feed before power-up in unfamiliar venues.
At 210mm deep it clears most shallow rack bags with room to spare — if you're building a fly pack around a 16-inch-deep bag rack, confirm your deepest unit, not this one, is the depth constraint.
02 · Know the whole path before you buy.
Signal path
Learn the route as a block diagram: source, product function, transport, and destination. Select any block to see what enters, what changes, and what leaves.
Interactive block diagramAuto-looping · hover, focus, or tap to hold a stage
Port-type signalProduct functionSystem boundary
Follow one signal from source to destination
Each block answers the same three questions: what arrives, what changes here, and what leaves.
01 · Source · selected
nema 5 15
nema 5 15
01 · Source
1 documented input
nema 5 15
Arrives as
1 documented input
Connector
nema 5 15
Signal
power
03 · What this product asks of the rest of the system.
Compatibility
Treat connector names as the start of the check—not the answer. These are the boundaries that determine a complete working path.
Best fit · Power Conditioner
Use it when 1U and 95.3 mm of depth fit the case.
Plan the companion path
Complete the path with upstream and downstream gear that matches connector, direction, signal type, protocol, and wiring standard.
Connector boundary
Documented connectors: nema 5 15. Match connector, direction, and signal type—not shape alone.
04 · Every connector, grouped by job.
I/O ports
Switch the product view and the documented port inventory updates with it—hardware and data stay side by side.
Every connector, grouped by job.
Switch panels to keep the hardware view and the documented port list in sync.
Front panelRear panel
All documented ports for Furman M-8x2 Power Conditioner
Port
Panel
Connector
Direction
Signal
Channels
LINE CORD
rear
nema 5 15
input
power
—
OUTLET 1
rear
nema 5 15
output
power
—
OUTLET 2
rear
nema 5 15
output
power
—
OUTLET 3
rear
nema 5 15
output
power
—
OUTLET 4
rear
nema 5 15
output
power
—
OUTLET 5
rear
nema 5 15
output
power
—
OUTLET 6
rear
nema 5 15
output
power
—
OUTLET 7
rear
nema 5 15
output
power
—
OUTLET 8
rear
nema 5 15
output
power
—
FRONT OUTLET
front
nema 5 15
output
power
—
Showing 10 of 10 documented physical ports.
05 · Compare the decision, not just the price.
Alternatives
The rows are organized around fit, power, I/O, and system role so a cheaper unit cannot hide a more expensive workflow.
M-8x2The Furman M-8x2 is the most affordable rack-mount power conditioner in Furman's lineup, providing basic surge protection and EMI/RFI filtering across eight rear-panel outlets. It lacks the pull-out rack lights and voltage meters of its siblings, but for budget builds or secondary racks where you just need clean, protected power distribution, it gets the job done at the lowest possible cost. A sensible starting point for any rack build.View gear →
P-1800 PF RThe P-1800 PF R is Furman's premium power conditioner with Series Multi-Stage Protection (SMP) and Linear Filtering Technology (LiFT) that dramatically reduces AC noise reaching your gear. It provides a noticeably quieter noise floor compared to basic power strips, which matters when running sensitive playback interfaces and IEM transmitters. The investment over a basic conditioner is worth it for rigs where audio quality and equipment protection are priorities.View gear →
PL-8CThe Furman PL-8C is a no-frills power conditioner with pull-out rack lights that is a staple in live audio racks of all sizes. It provides basic surge protection and noise filtering for your gear while the integrated lights make it easy to work on your rack in dark stage-side environments. At this price point, it is the most practical way to add power conditioning and rack illumination to a budget build.View gear →

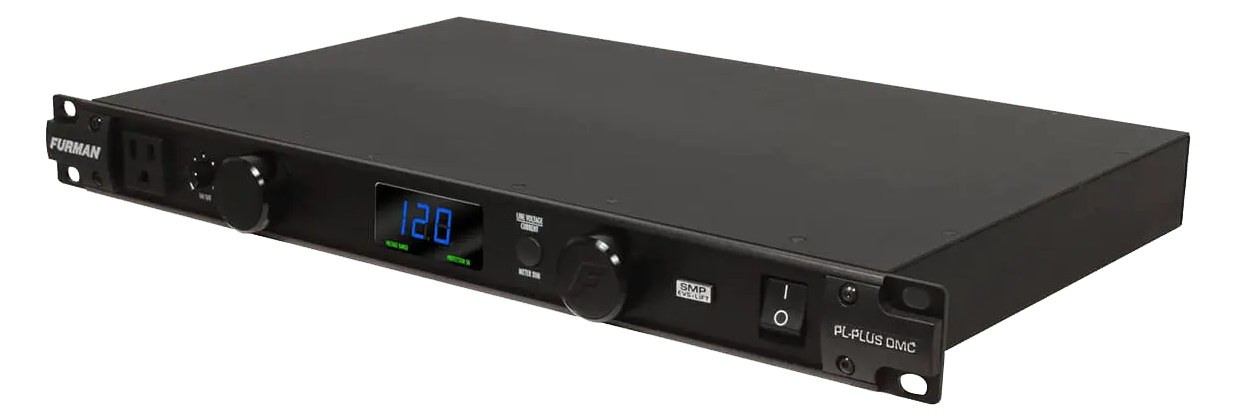

PL-Plus DMCThe Furman PL-Plus DMC is a rack staple that cleans up your AC power while giving you real-time voltage and current monitoring via its front panel meters. The pull-out rack lights are genuinely useful for dark stage-side setups, and the linear filtering protects sensitive audio and digital gear from power line noise. A smart first-piece-in for any IEM or playback rack build.View gear →
06 · Resolve the questions that can change the purchase or build plan.
Planning questions
Short, source-backed answers surface rack fit, power, cabling, and connection details before they become surprises.
How will the Furman M-8x2 Power Conditioner affect rack fit and case depth?
It occupies 1U. Its documented depth is 95.3 mm.
How much power does the Furman M-8x2 Power Conditioner draw?
Its power requirement is not yet verified in the catalog.
What connections does the Furman M-8x2 Power Conditioner have?
10 documented physical ports, including LINE CORD, OUTLET 1, OUTLET 2, OUTLET 3, OUTLET 4, OUTLET 5.
07 · See this unit inside a real rack plan.
Builder preview
Placement is only the start. Builder checks space · depth · weight, power headroom, dependencies, and compatible signal paths around this exact catalog item.Open in Builder
