How it works in the path

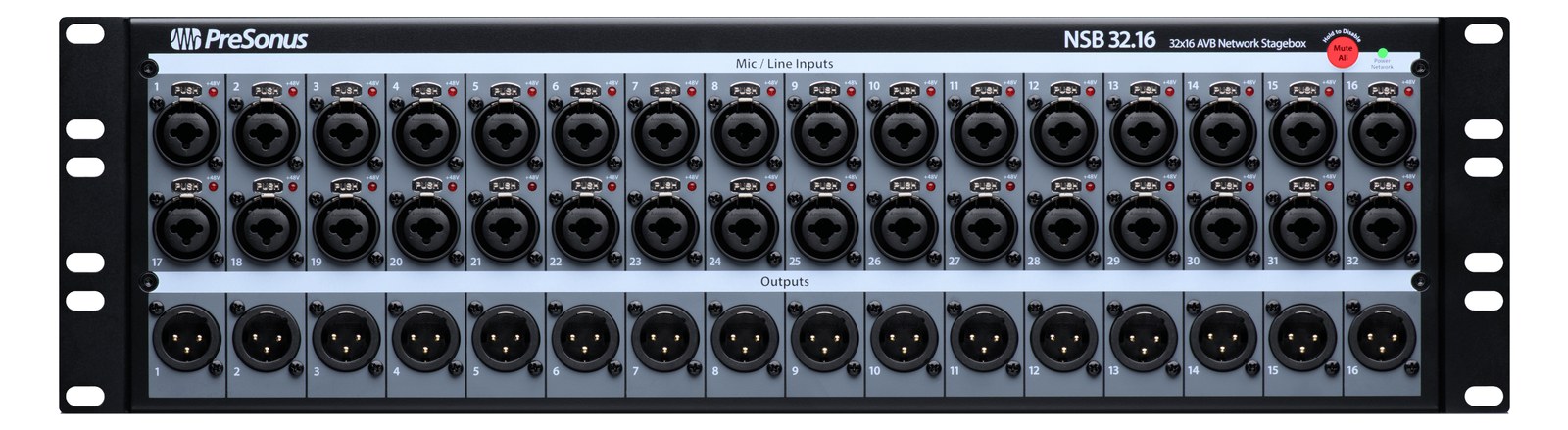

At forty watts typical draw from a standard IECThe standard three-prong appliance power inlet on rack gear — the kettle lead. C13/C14 in spec-sheet speak. inlet, it is not a heavy power burden, but the fifty-five-watt ceiling means you should account for the headroomThe margin between your normal level and where things clip — headroom is what absorbs the snare hit you didn’t see coming. in a conditioned strip rather than guess. The 3UThe standard slice of rack height: 1U = 1.75″. A 3U box takes three slices; half-rack gear pairs two units side by side in one. steel chassis weighs in at four kilograms and sits at 250mm deep — shallow enough to fit a road-standard rack without fighting the back panel. In practice, the single network port is both the strength and the constraint: one cable for 48 channels is clean and fast at load-in, but AVBAudio Video Bridging — open network audio (MOTU, PreSonus) where the switch reserves bandwidth so streams can’t glitch. Milan is its pro profile. means you are committed to AVB-capable switches and PreSonus AVB infrastructure. Recallable preampThe gain stage that lifts a mic’s tiny signal up to line level — the first thing a signal hits, and a big part of how a console sounds. gainsHow much the preamp amplifies the incoming signal. Too low and you’re hunting through hiss; too high and peaks clip. mean your line checkThe quick pre-show pass confirming every input reaches the console, one line at a time. Not a soundcheck — just does it work. can start from a known-good file rather than from zero every night, which matters on a fast changeover.
